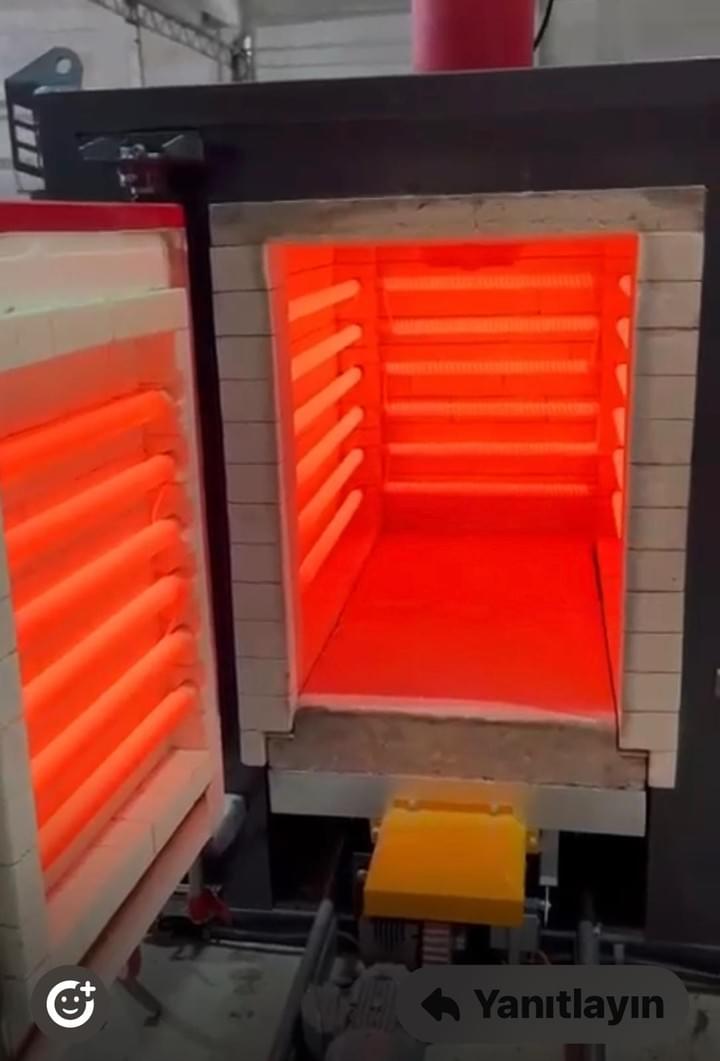

    Electric Heat Treatment Furnace

    120Kw / 380V / 50Hz

    TAI-120 / 120KW ELECTRIC HEAT TREATMENT FURNACE DATASHEET

    • Brand-model/Type:TAIPAN INDUCTION - TAI-120 / EHTF120
    • Function: Annealing and tempering
    • Heating materials: Steel, copper, aluminium, stainless steel, brass, titanium, etc.
    • Max.temperature: 1.100℃
    • Main applications: tempering, annealing heat treatment, curing,
    • The effective working size:1500(L)x1200(W)X900(H)mm
    • Rated voltage:380V/3phase
    • Frequency:50HZ
    • Rated temperature:1050℃
    • Heating type：electric
    • Heating element connection:Y
    • Heating zone:1zone
    • Temperature control:Master temperature control solid-state relay is controlled by digital display instrument,controlbyPLCfullautomaticcontrolsystem.
    • Oven door open way:electricallifting
    • Furnace temperature uniformity:±10℃
    • Surface temperature:≤50
    • Control accuracy:±1℃
    • Heating up time:≤2.5h

    40Kw mobile induction machine
    TAI-120 / 120KW ELECTRIC HEAT TREATMENT FURNACE
    • Model: TAI-120

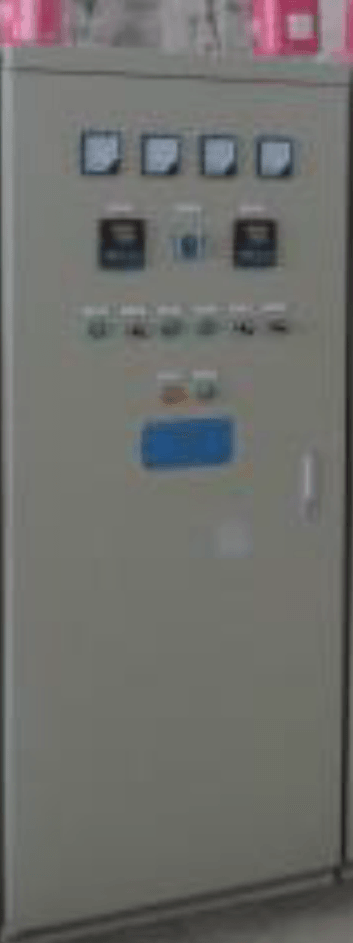

    Temperature control system

    A.This control system is suitable for the furnace temperature automatic control. The measured values and display valueis independent of ultra bright LED double four, according to the expert PID algorithm without overshoot, temperature control values preset by the user,Actu
    ator chooses the current advanced high power solid state relay through intelligent digital display temperature controller to control furnace

    temperature automatically.

    B.Dual temperature control system is equipped with a temperature controller and thermocouple, double overtemperature alarm, equipment operation to ensure safe and reliable, with sound andlight alarm system.

    C.System is equipped with heat preservation time relay a, holding time and sound and light alarm function.
